Create an RTP Gateway User

Integration with an existing LMR radio network, requires the appropriate RTP gateway hardware and configuration.  For more information, click here or contact Support.

Setting up your RTP Gateway user in the Admin Portal

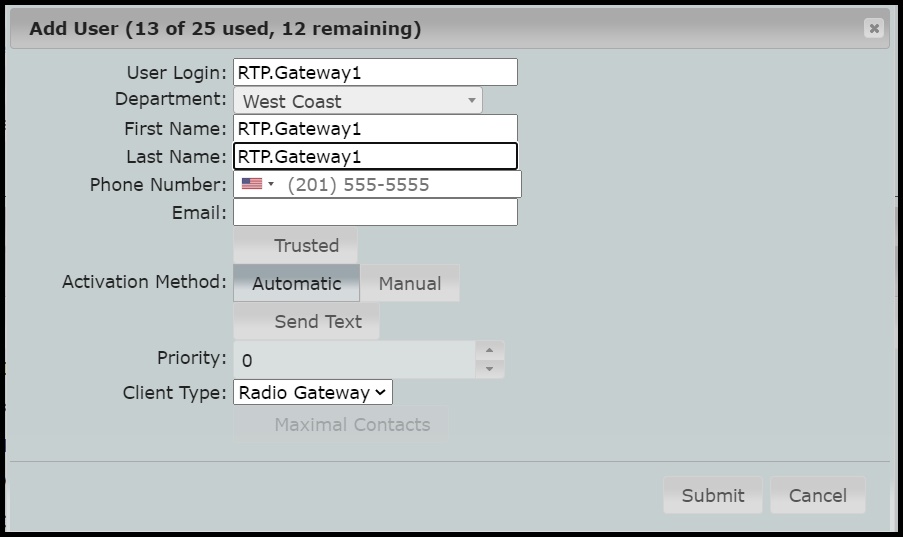

To set up the RTP Gateway, create a new user that will be an RTP Gateway client.  The client type must be set to "Radio Gateway" as shown below.

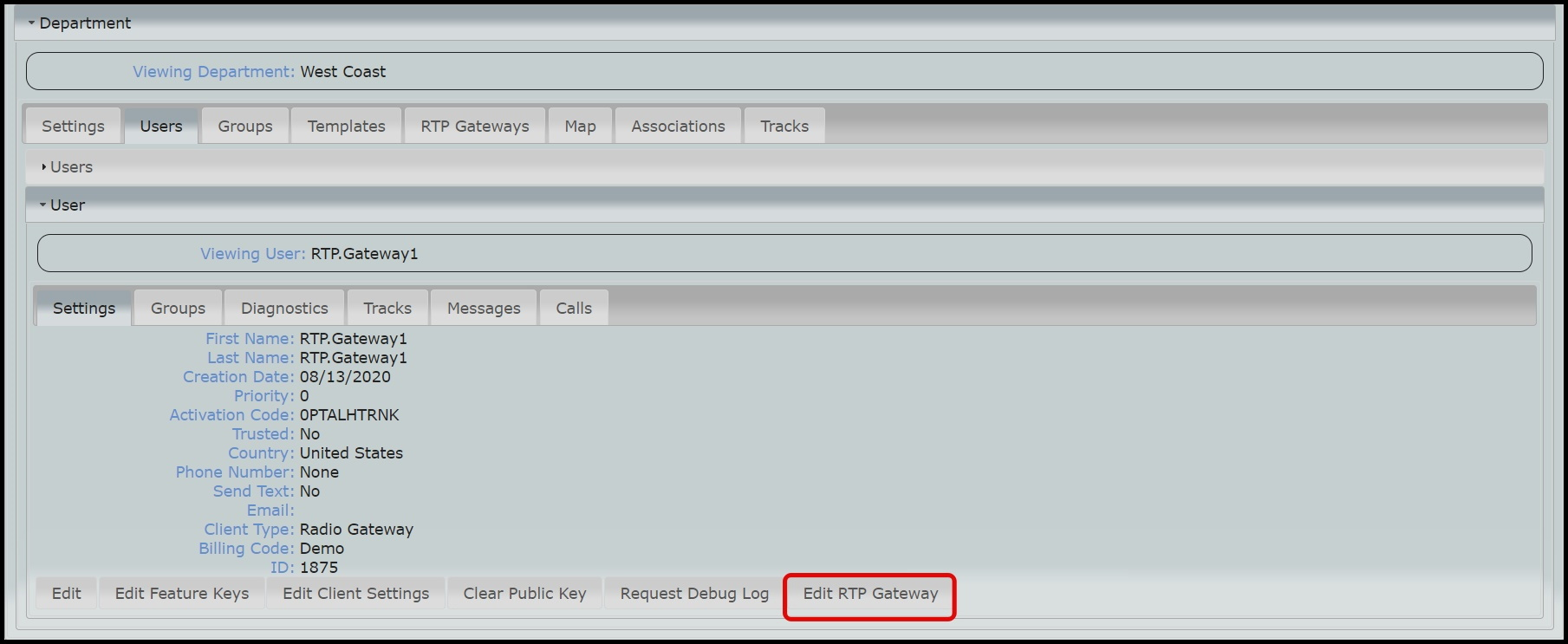

View the RTP Gateway user that you just made and click "Edit RTP Gateway" to add the IP address and port.

From the Users tab, click on the gateway user and select "Edit RTP Gateway." If the RTP Gateway tab is not visible, please contact Support.

An error message means that the license is incorrect.  Contact Support.

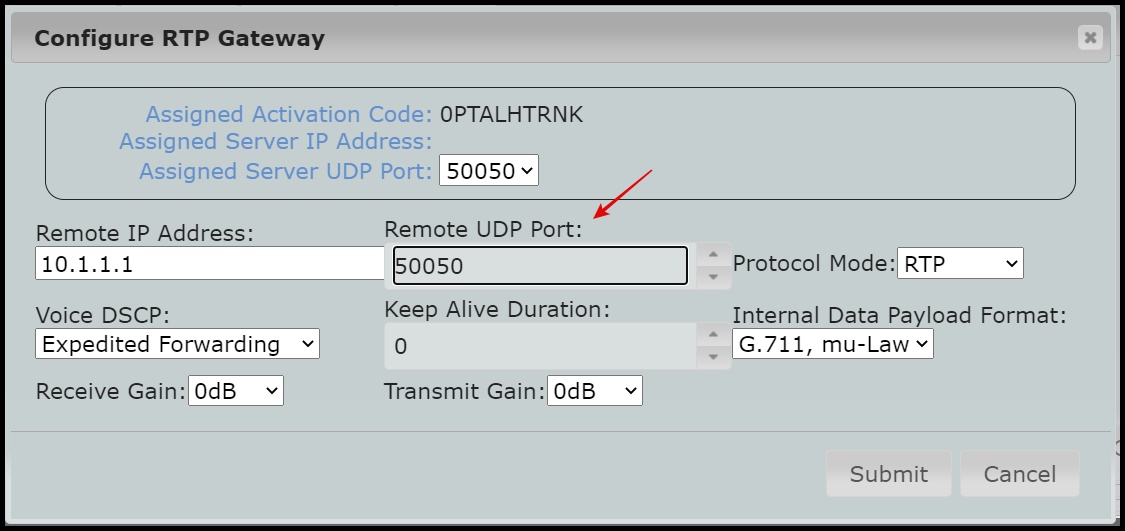

In the configure window, set the remote UDP port to match the server assigned port (image).
