Android Settings Menus
Overview
The settings menus are where you may customize and configure the app. You can access the General, Default Sound Profile, and Headset Sound Profile menus via the Navigation Drawer. You may also enter a search term in the Search All Settings section.

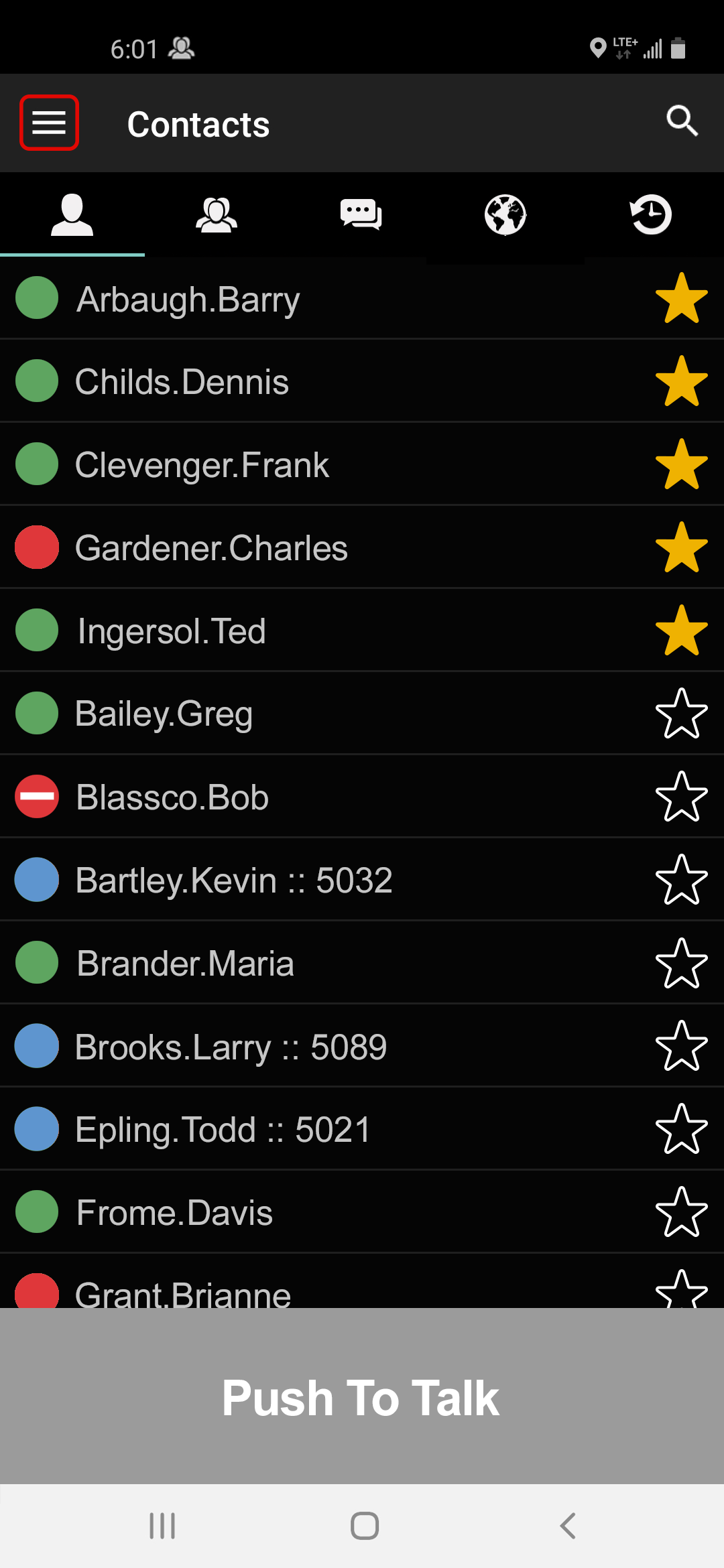

| Reach the settings menu by opening the navigation drawer, located in the top right hand corner. Tap "Settings." |
General Settings
Your administrator may configure these settings in the admin portal, but changing the settings on your device will override settings in the portal. The Advanced menu items contain additional options for customization.
| Press "General." |
Incoming Call
| Item | Default Setting | Description |
| Call Priority | Current | Call priority determines which type of call takes precedence. The default setting of "current" means that whichever call is in progress, that type of call will take priority over another type of call. |
| Foreground App on call | On | Will bring app to the foreground automatically when a PTT call is initiated or received. |
| Wake display at call start | On | Will wake up and unlock display when a PTT call starts. |
| Alert call ring time | 30 seconds | Time, in seconds, to ring when receiving an alert call. |
PTT
| Item | Default Setting | Description |
| PTT Button | None | PTT Button connection type. For more information about bluetooth or wired device connections, click (here). |
| Block PTT call start when in background | Off | Will not block PTT call start when in background. |
User Interface
| Item | Default Setting | Description |
| Allowed screen orientation | Portrait | Set the allowed screen orientation in portrait or landscape format. |
| Lock split screen slider | Conditional | This option is available when Allowed screen orientation is turned on. Allows resizing in landscape orientation. |
Default Sound Profile
The Default Sound Profile settings menu contains the customization options for the audio behavior surrounding PTT calls. These settings control how the app sounds as you begin calls, take or revoke the floor. These settings may be left at the defaults or adjusted according to the device type and your work setting.
| Open "Default Sound Profile" (with the mic icon) to control default settings for ring and tone settings. |
| Item | Default Setting | Description |
| Ring gain | 100 | Sets the relative gain to play the ringtone when a PTT call is received. A value of 0 will be silent where a value of 100 will play the current volume. |
| Ring on incoming call | Off | Will not play PTT ringer when a PTT call is received. |
| Vibrate on incoming call | Off | Will not vibrate when an incoming call is received. |
| Minimum call volume | 25 | Sets the minimum call volume for incoming PTT calls. |
| Tone gain | 100 | Sets the relative gain to play the beep tones during PTT calls. A value of 0 will be silent where a value of 100 will play at the current volume. |
| Play grant tone | On | Will play tone when you are granted the floor to talk. |
| Vibrate on grant | On | Will vibrate the phone when you are granted the floor to talk. |
| Play deny tone | On | Will play a tone when you are denied the floor because someone else is speaking. |
| Play revoke tone | On | Will play a tone when the floor is taken from you because you talked too long. |
| Play call lost tone | On | Will play a tone when a call is lost. |
| Play busy bonk tone | On | Will play a tone when an initiated call cannot go through. |
| Play channel sounds | On | Will play channel number announcements when the channel is changed using a physical dial or buttons. |
| Play channel interrupt tone | On | Will play a tone when the playing audio is switched from one channel to another. Does not apply is the floor taken tone has been enabled. |
| Advanced Settings | ||
| Volume boost | 0 | Sets the amount to boost the volume. A value of 0 indicates no change. Note that values above 0 will increasingly distort the audio. |
| Play ready tone | Off | Will no play tones indicating when the satellite channel is not ready and again when it's ready. Not applicable for most users. |
Headset Sound Profile
The Headset Sound Profile menu controls aspects of the app when a headset is connected.
| Open the Headset Sound Profile (the headset icon) to customize rings and tones when using a headset. |
| Item | Default Setting | Definition |
| Ring Gain | 100 | Sets the relative gain to play the ringtone when a PTT call is received. A value of 0 will be silent; the default value of 100 plays at the current volume. |
| Ring on incoming call | Off | Will not play PTT ringer when a PTT call is received. |
| Vibrate on incoming call | Off | Will not vibrate when an incoming call is received. |
| Minimum call volume | 19 | Sets the minimum volume for incoming PTT calls |
| Tone gain | 50 | Sets the relative gain to play the beep tones during PTT calls. A value of - will be silent, where a value of 100 will play at the current volume. |
| Play grant tone | Off | Will not play tone when you are granted the tone to talk. |
| Vibrate on grant | On | Will vibrate the phone when you are granted the floor to talk. |
| Play floor taken tone | Off | Will not play a tone when someone else is granted the floor to talk. |
| Play idle tone | Off | Will not play a tine when the floor is available to talk, or in an idle state. |
| Play deny tone | On | Will play a tone when you are denied the floor because someone else is talking. |
| Play revoke tone | On | Will play a tone when the floor is taken from you because you talked too long. |
| Play call lost tone | Off | Will not play a tone when a call is lost. |
| Play busy bonk tone | Off | Will not play a tone when an initiated call cannot go through. |
| Play channel sounds | On | Will play channel number announcements when the channel is changed using a physical dial or buttons. |
| Advanced | ||
| Volume boost | 0 | Sets the amount to boost the value. A value of 0 indicates no change. Note that values above 0 will increasingly distort the audio. |
| In the tables shown above, the advanced options are described. |
Search All Settings
Use the search bar function to quickly find a setting item.
| In the search bar, type the first letters of your search to bring up a set of related menu choices. |
|
.
