Savox BTR155 Setup Guide

Nancy Rodgers

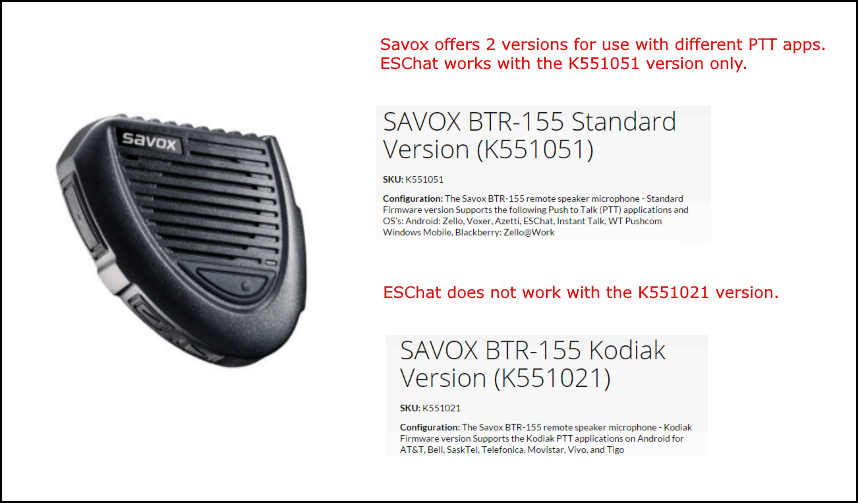

The Savox BTR-155  is a Bluetooth with PTT button remote speaker mic that works with ESChat on Android devices.  iOS users can use the Savox without the PTT button function (Speaker and Mic only).

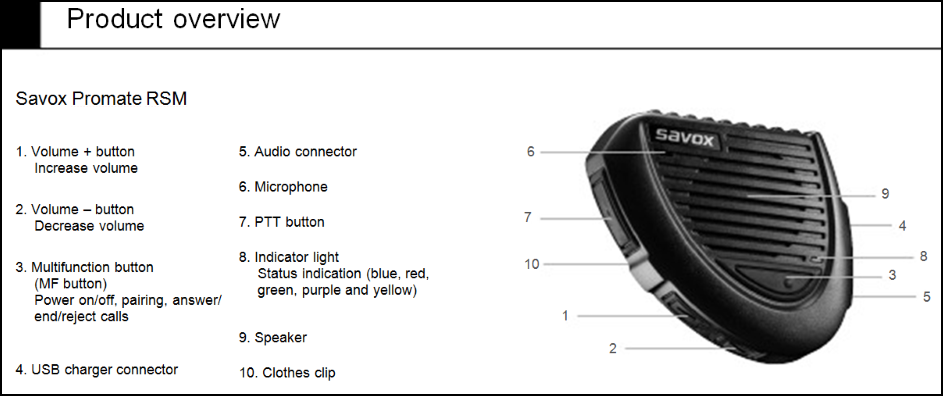

Product Instructions

Power on

     When the device is off, press and hold the MF button for 2 seconds.  Purple light flashes once and the device turns on.

When powered on for the first time,  the device goes to pairing mode automatically.

Power off

    When the device is on, press and hold the MF button for 3 seconds.  Purple light flashes once and the device turns off.

Pairing

    When the device is off , press and hold the  MF button for 5 seconds.   Blue and red light flash alternately.   To complete the pairing, follow the instructions in your radio or mobile phone user guide.   Select “Savox BTR-155 a” and use the passcode 0000.

Reset Pairing

    While the BTR-155 is in pairing mode, press and hold both the volume up and down buttons for three seconds to reset pairing and disconnect the device from an Android device. The BTR-155 will play a unique tone, then power off.   Power the BTR-155 on, and perform the pairing procedure.

PTT calls

     Press and hold the PTT button to make a PTT calls.


Light indicators

Savox Promate RSM uses a Tri-color LED light (blue, red and green).  It shows as purple when blue and red turn on at the same time.  It shows as yellow when green and red turn on at the same time.

Different light combinations represent different statuses:

  • Powered, not connected : Purple light flashes once. Red light flashes.
  • Connected : Blue light flashes
  • Pairing mode : Blue and red light flash alternately.
  • Active phone call : Green light flashes.
  • Battery low : Yellow light flashes.
  • Charging battery : Red light on.
  • Powering off : Purple light flashes once. Device turns off.
  • Charging completed : Red light turns off.


Enable in ESChat:

Once paired with your Android phone, open ESChat.

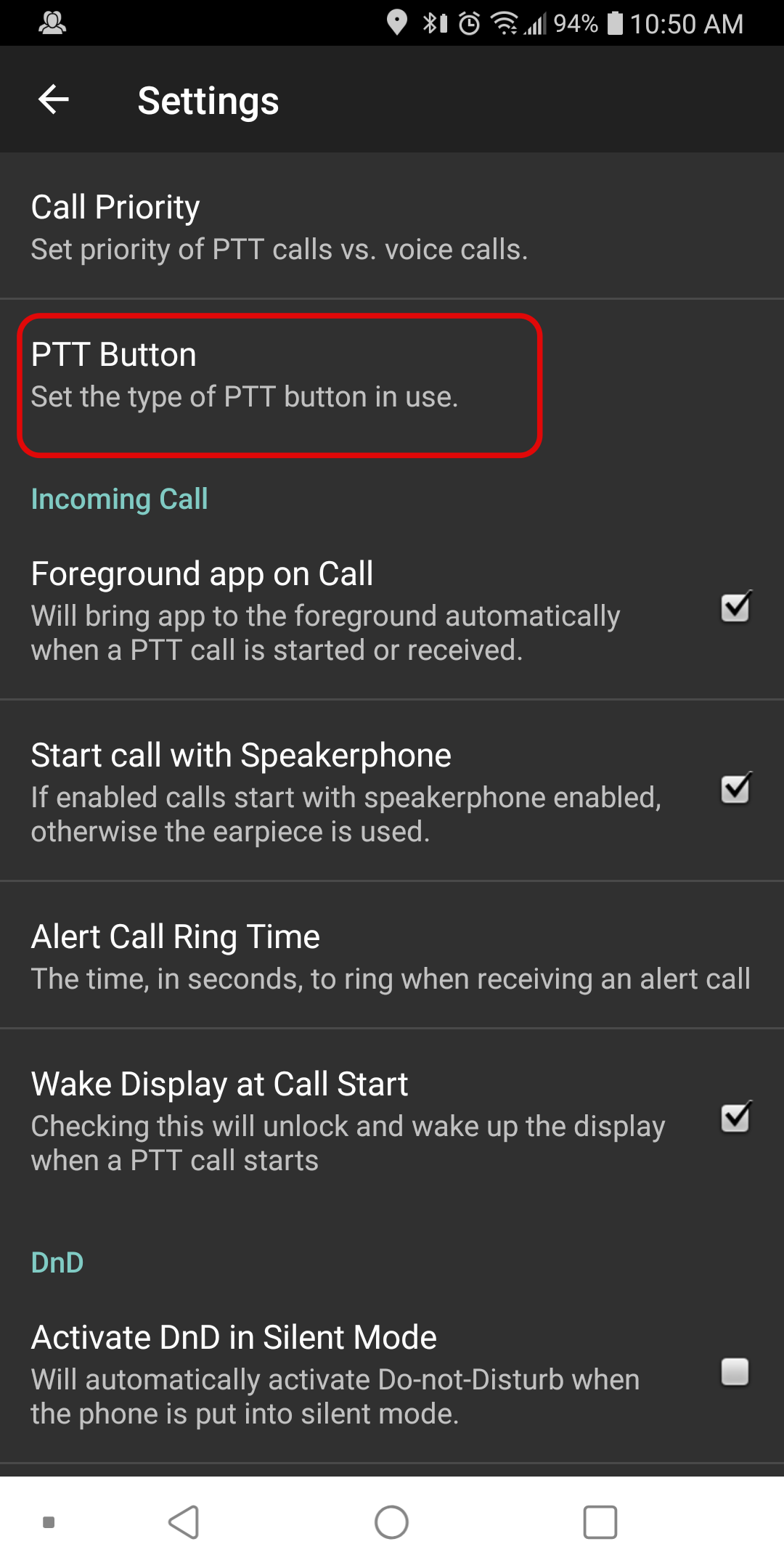

Select the 3 dot menu in the top right, then select "Settings".  Then Select "PTT Button":

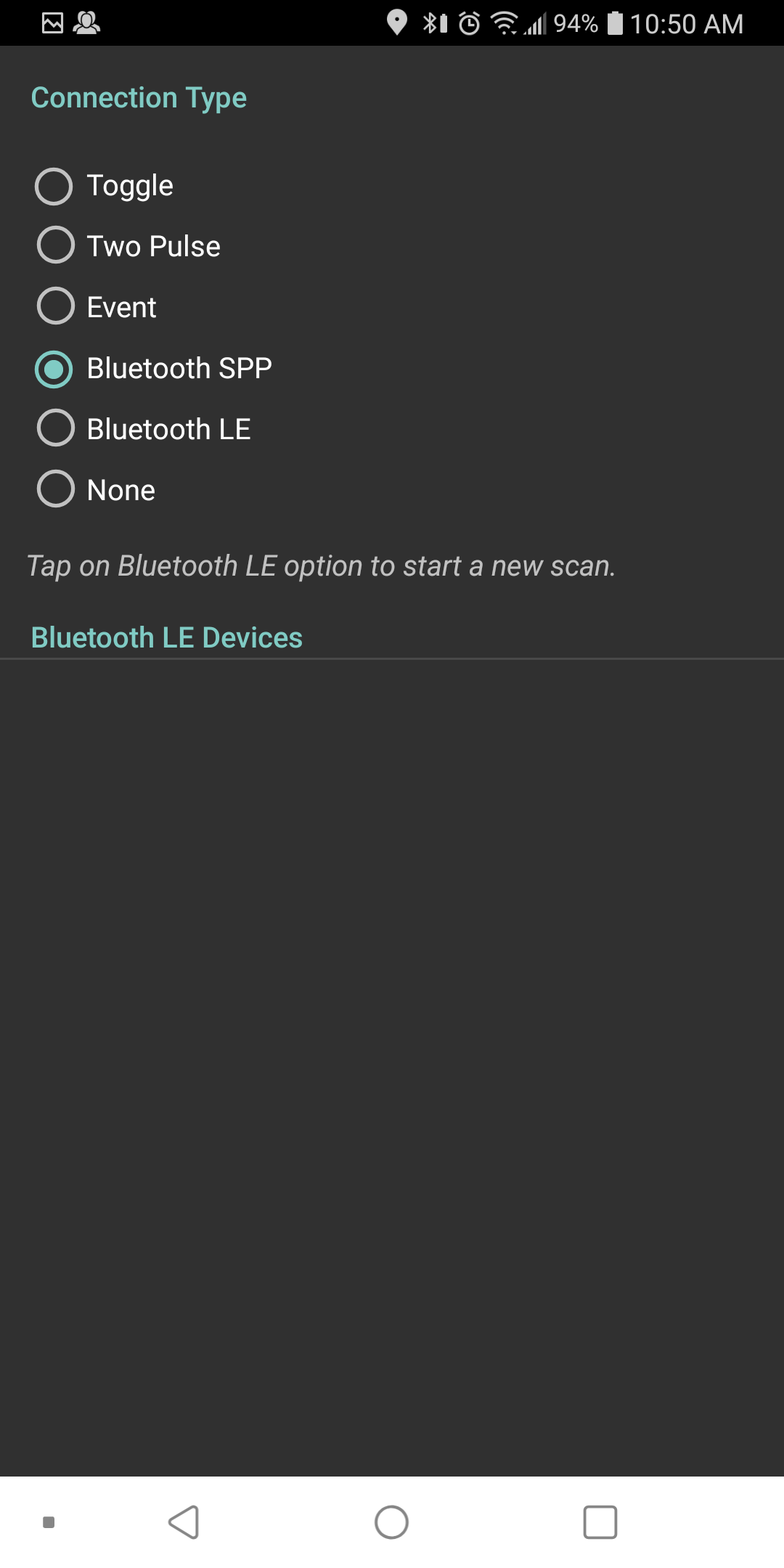

Select "Bluetooth SPP" and hit the back button.

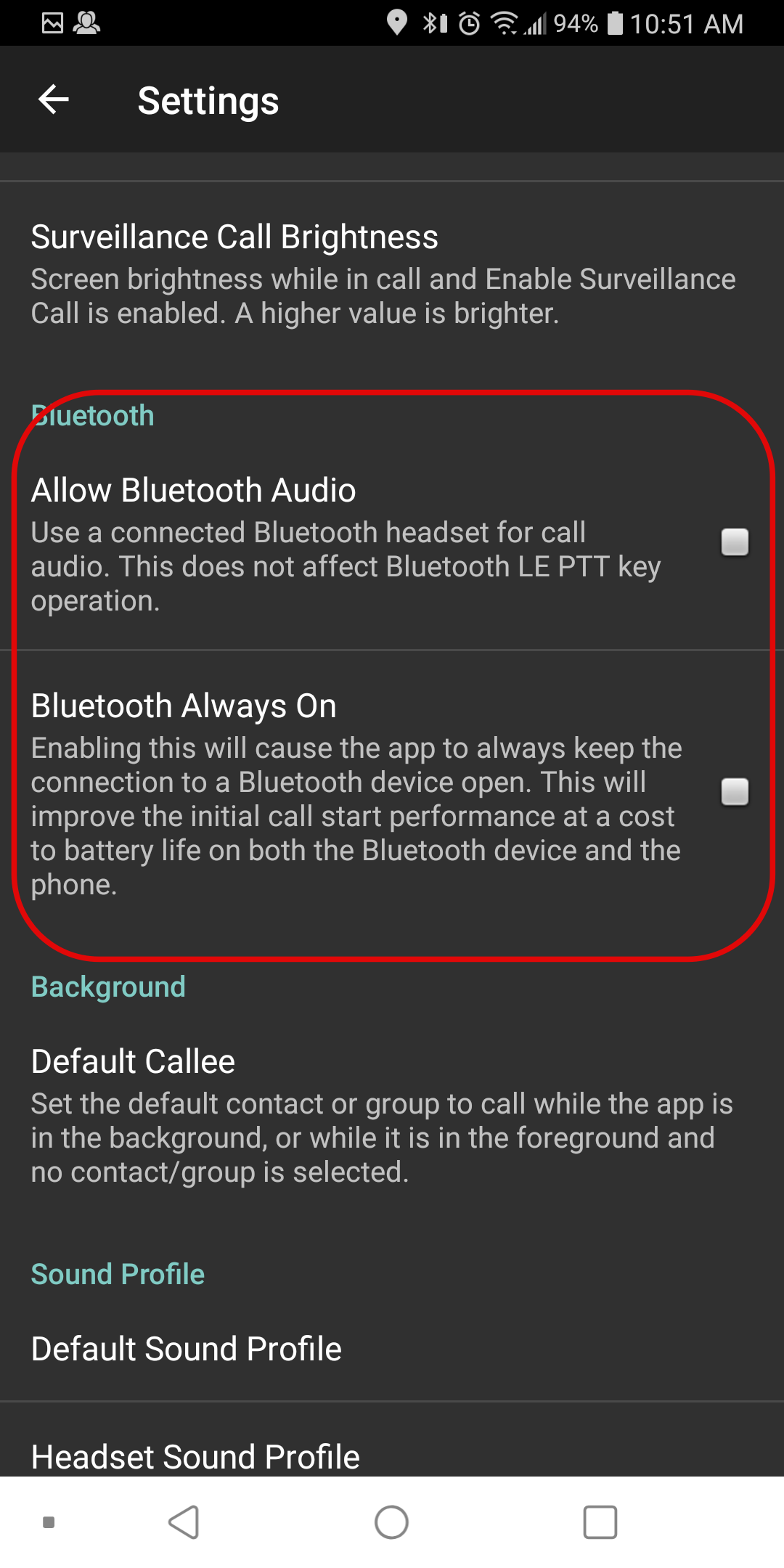

To enable the audio, select "Allow Bluetooth Audio" and "Bluetooth Always On":


Your Savox BTR-155 will now work with ESChat.
