Savox RSM30 Setup Guide

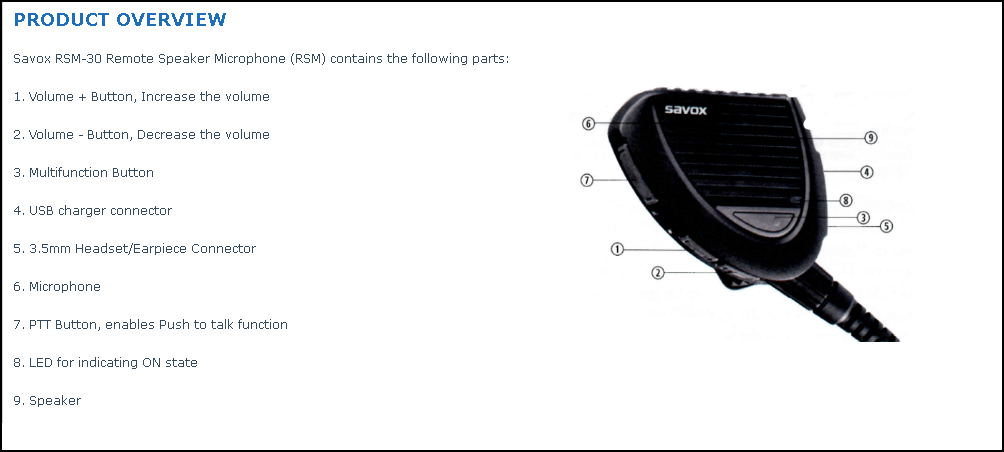

The Savox RSM-30  is a wired with PTT button remote speaker mic that works with ESChat.

PRODUCT INSTRUCTIONS

Before you can start using this device, you need to first charge the battery for about 6 hrs. Average charging time is approximately 4 hrs. NOTE! To extend the product operation time and minimize battery drain, always disconnect the RSM-30 from the mobile phone when not in use.

OPERATION / INSTRUCTION

Power on

The RSM-30 powers on automatically when connected to a mobile phone that is powered on. The flashing green LED indicates the ON state.

Power off

When the RSM-30 is disconnected from the mobile phone, it will automatically shut down within 5 seconds. A shutdown tone will be heard while shutting down.

Self-powered mode

The RSM-30 is set as self-powered mode by default. In cases when you want to activate the mode manually, power off the device, then press and hold the Multifunction button for 10 seconds until you hear 5 quick beeps. You will first hear a start beep, followed by beeps indicating the battery level, then after 10 seconds, the 5 quick beeps. The LED should turn flashing green to indicate that RSM30 is powered "ON". In this mode the device is powered on even after disconnected from the phone. To disable the mode, press and hold the Multifunction button for 10 seconds until you hear 5 quick beeps and the LED should change from flashing green to solid green and then off. A shutdown tone will be heard while shutting down.

Selecting the Push-to-Talk (PTT) - Applications

RSM-30 Remote Speaker Microphone supports 6 different PTT application modes. It has been pre-set to be Mode 1.

How to check current PTT mode:

Disconnect the RSM-30 from the mobile phone and wait until you hear a shutdown tone. You can only check PTT mode after RSM30 has been shut down. Press and hold the Volume down and Multifunction button simultaneously. The number of audio beeps heard represents the current PTT application mode.

How to switch among PTT modes:

Disconnect the RSM-30 from the mobile phone and wait until you hear a shutdown tone. You can only switch PTT mode after RSM30 has been shut down. Press and hold the Volume down and Multifunction button simultaneously. You will first hear the beeps indicating the current PTT mode. If you continue to press and hold the two buttons, you can cycle through the different PTT modes. The following table shows the supported PTT applications and the respective audio beeps:

PTT call

Press and hold PTT button to initiate PTT call. Release button to end PTT call.

Battery check

The battery level can be checked when RSM-30 is not connected to a mobile phone and has been powered off.

Press and hold the Multifunction button to check the battery capacity level. The battery level is indicated by the number of beeps after you hear the 'start beep'.

3 beeps, battery capacity level 60-100%

2 beeps, battery capacity level 30-60%

1 beeps, battery capacity level 10-30%

Release the Multifunction button after the beeps.

Low battery level

The RSM-30 will automatically generate an alarm signal when battery capacity level is below 10% of the total capacity. Connect the RSM-30 to the charger.

Configure in ESChat:

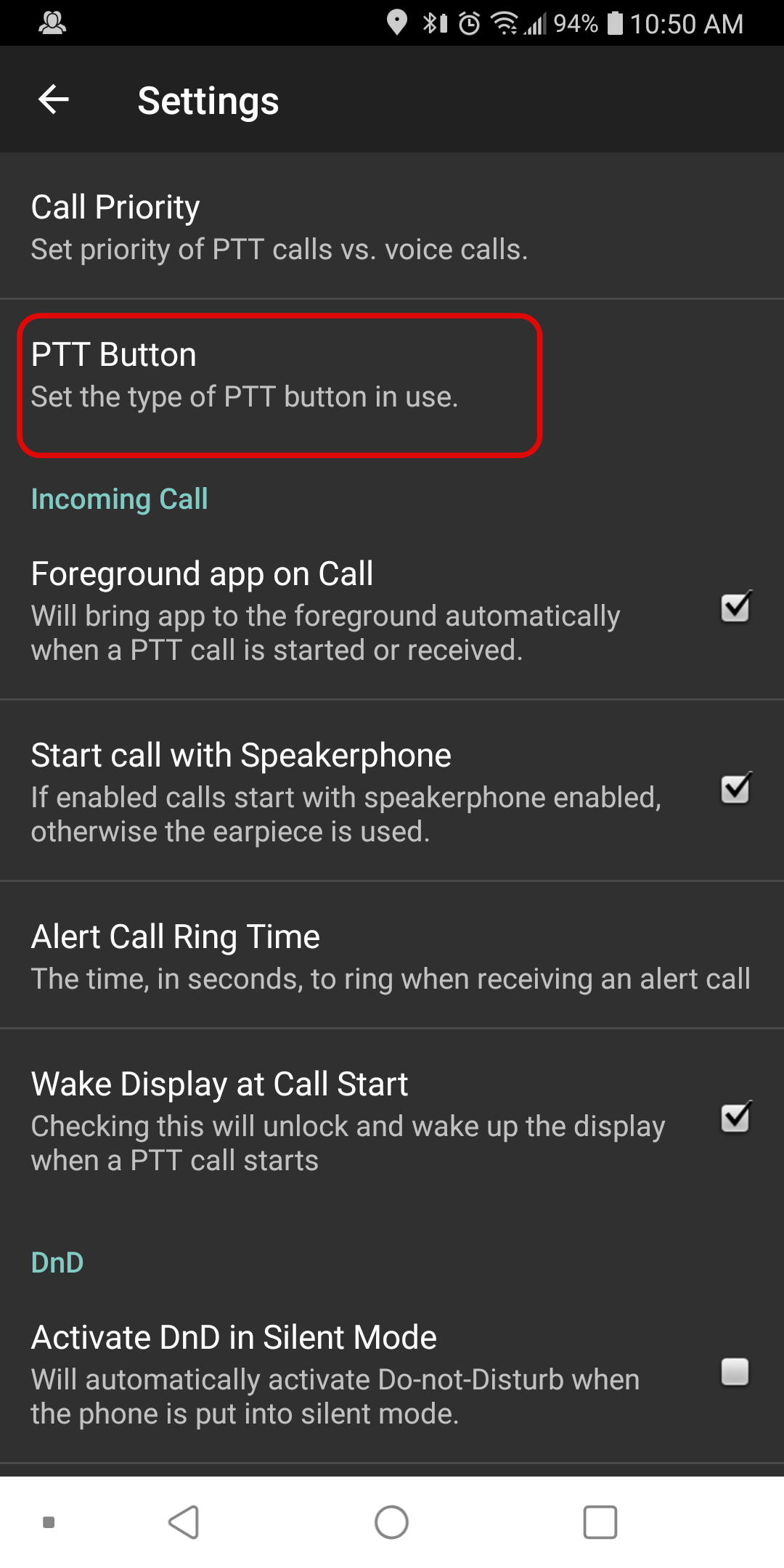

Select the 3 dot menu in the top right, then select "Settings".  Select the "PTT Button" setting:

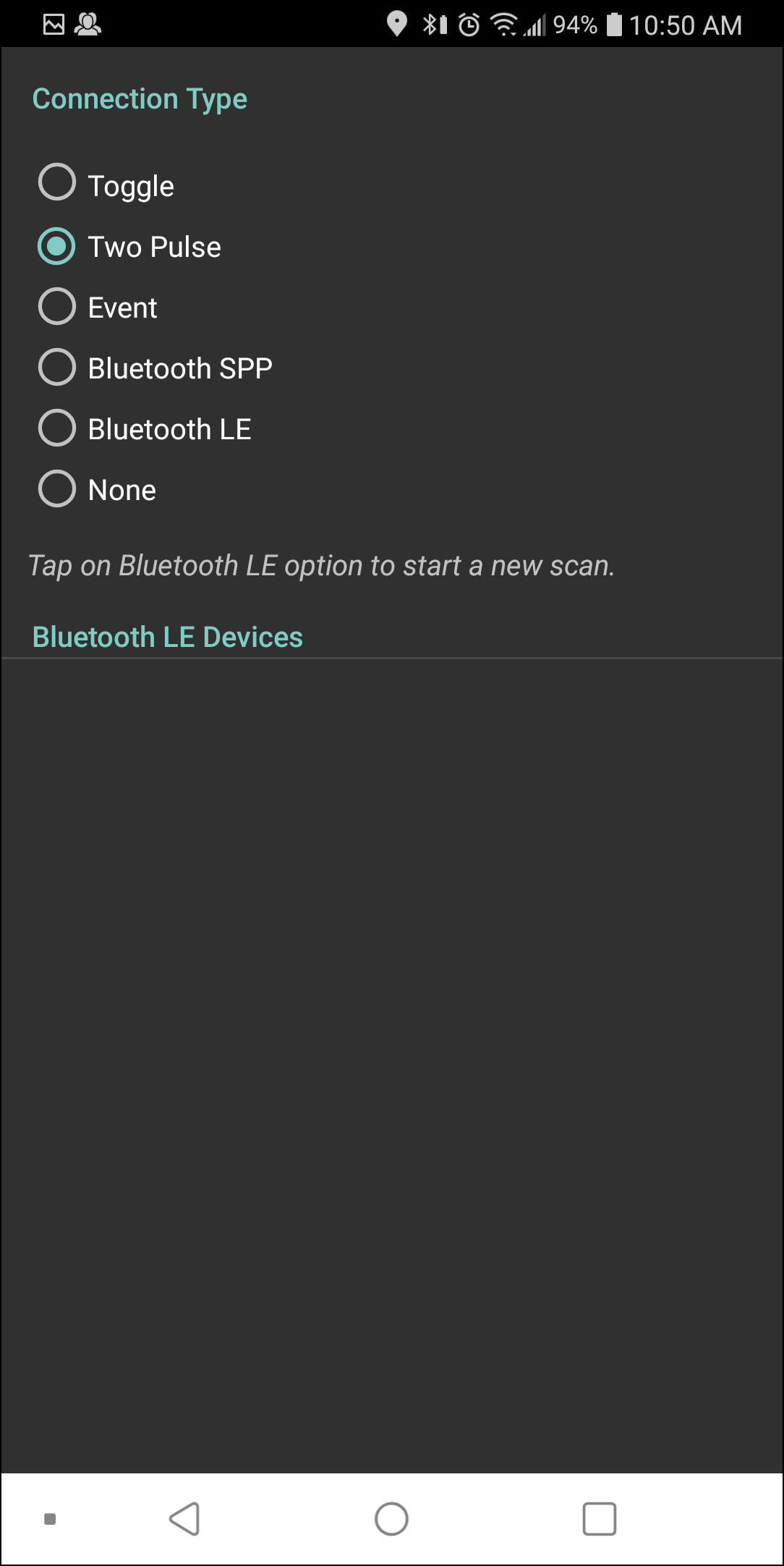

From the list, select "Two Pulse":

You are now ready to use the Savox RSM-30 with ESChat.
