eCom RSMEx 01 BT Bluetooth SpeakerMic setup

The eCom RSM-Ex 01 BT is a Bluetooth speaker/mic with PTT and channel up/down buttons.  This is a programmable device which enables all of these functions with ESChat.    The mic is programmed by eCom's app, eSetup RSM-Ex.  Here are the instructions for setup the RSM mic to work with ESChat.

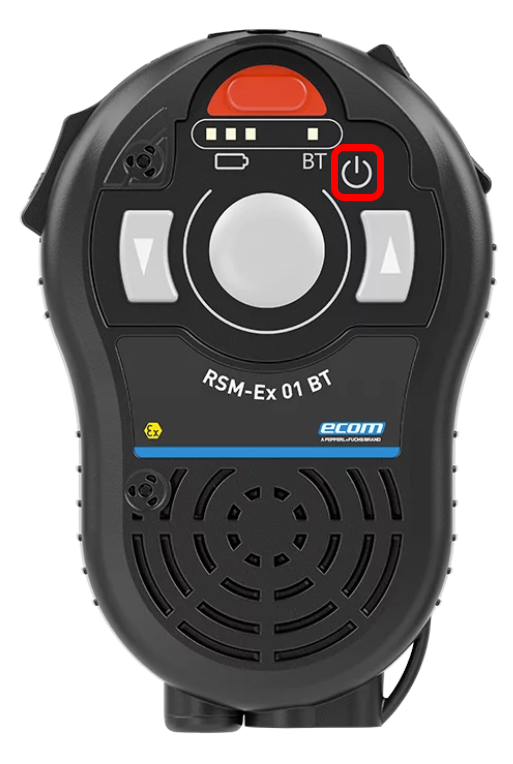

Begin by powering on the device by holding the power button until the RSM announces "Discovering".  In the Android menu, pair the eCOM RSM-Ex 01 BT to the Android device.

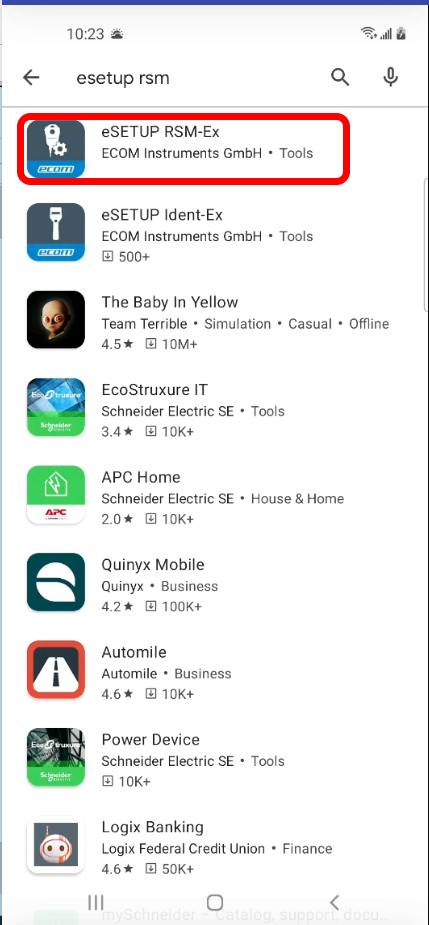

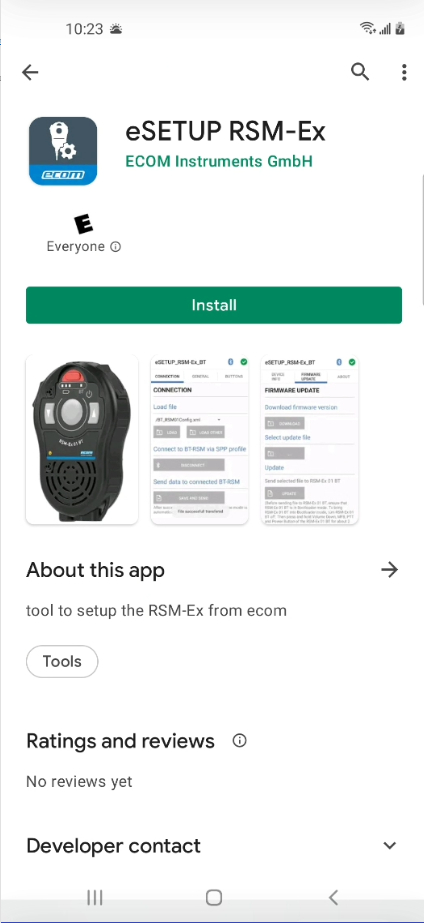

You will need to install the "eSetup RSM-Ex" app via the google play store.  Exit the store after the install without opening the app.

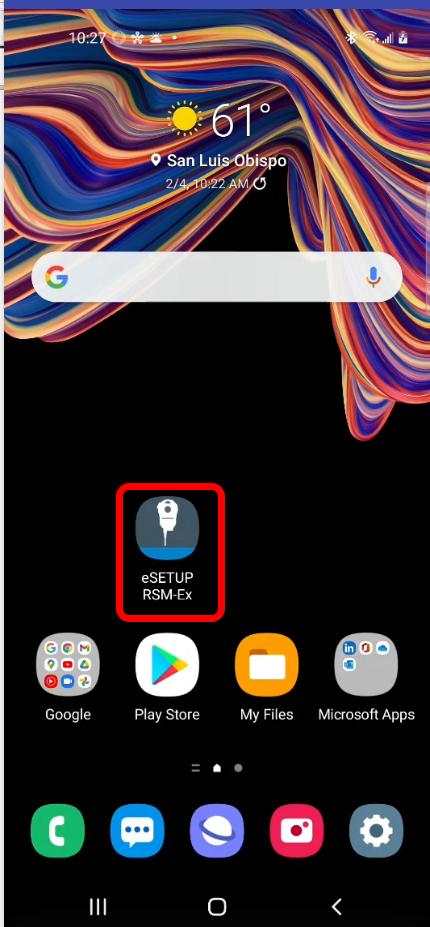

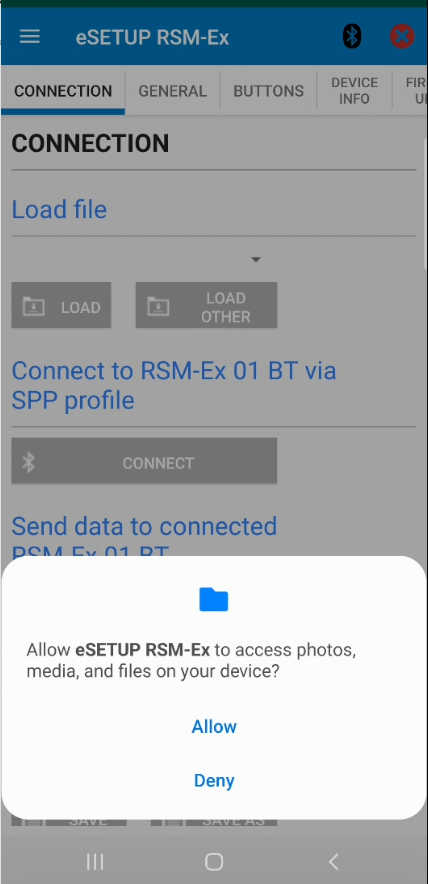

From your device home screen, open the "eSetup RSM-Ex" app. You will need to accept the permission upon startup.

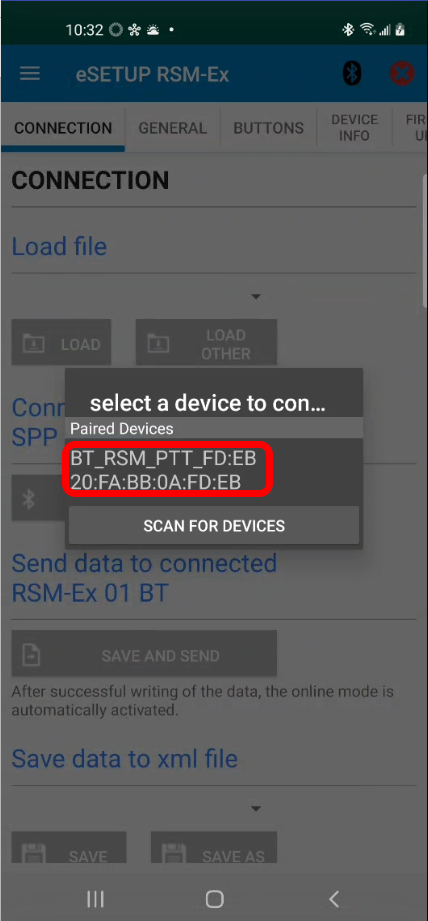

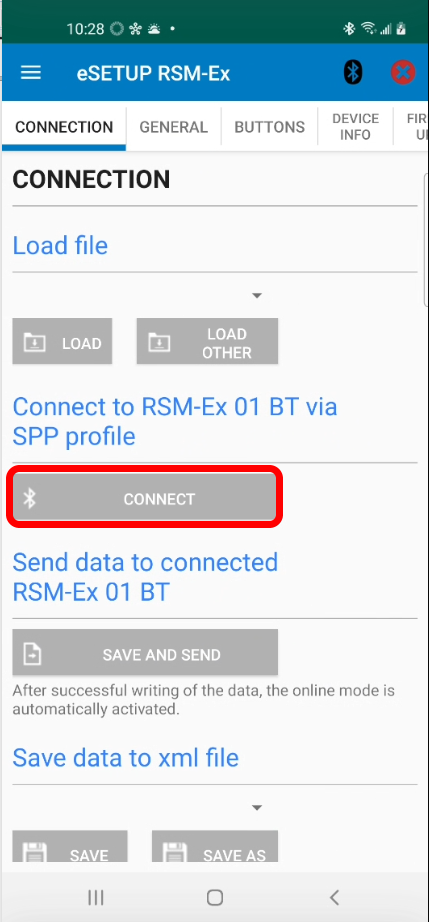

Select "Connect to RSM-Ex 01 BT via SPP Profile." Next, tap the device to connect.

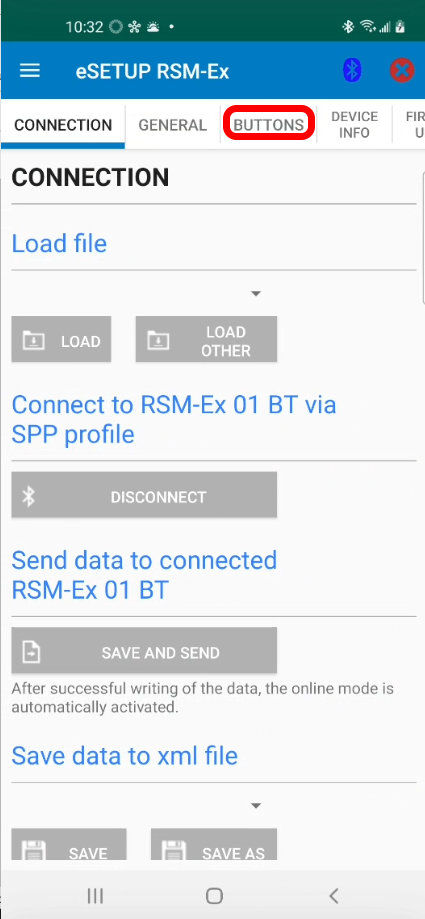

The section required for setup with ESChat is the "Buttons" tab. Select the "Buttons" tab.

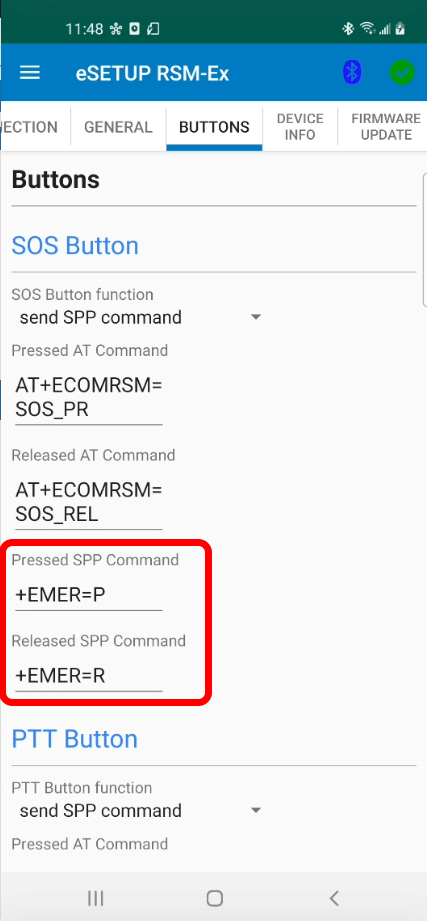

Begin with the "SOS Button" section.  For the fields "Pressed SPP Command" and "Released SPP Command" you will need to input the following: Pressed SPP Command: +EMER=P Released SPP Command: +EMER=R

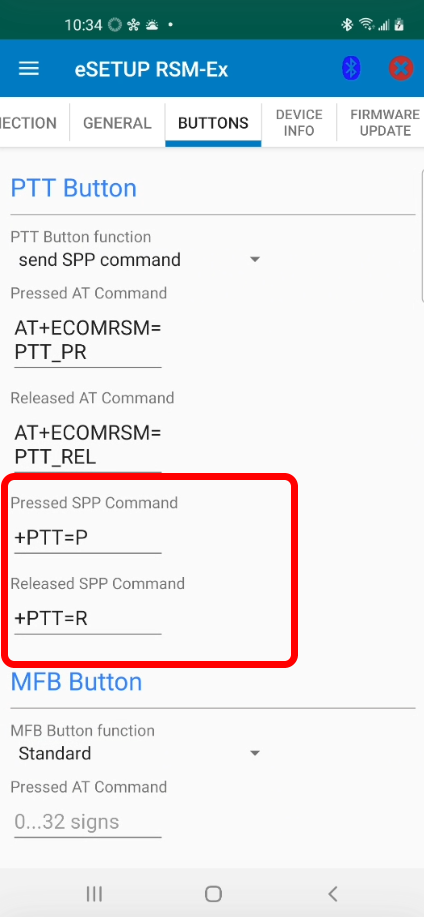

In the "PTT Button" section, the fields for "Pressed SPP Command" and "Released SPP Command" will need to be the following: Pressed SPP: +PTT=P Released SPP: +PTT=R

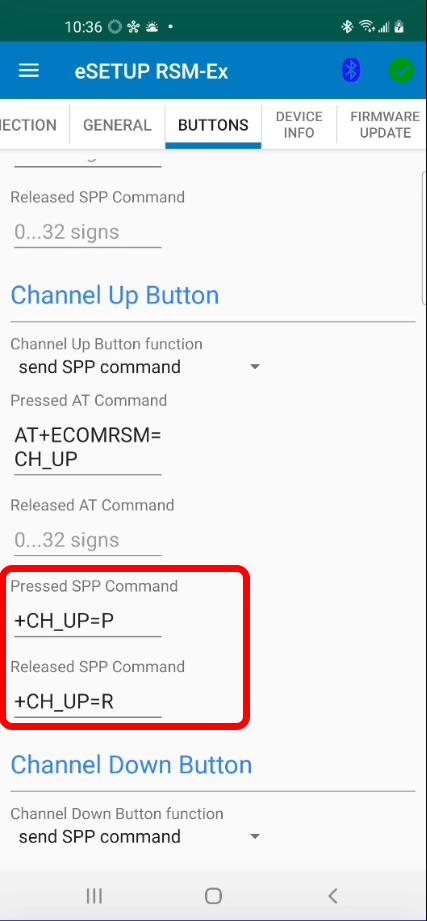

Scroll down to the "Channel Up Button" section.  For the "Pressed SPP Command" and "Released SPP Command" you will need the following: Pressed SPP:  +CH_UP=P Released SPP:  +CH_UP=R

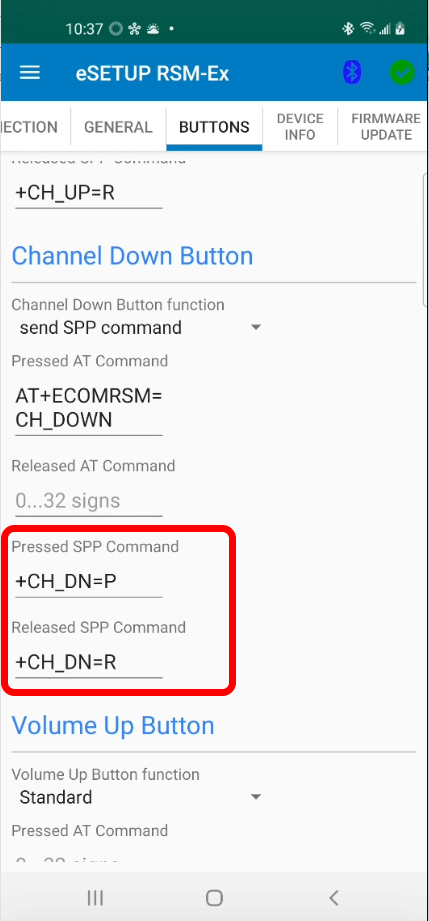

Scroll down to the "Channel Down Button" section.  For the Pressed SPP Command" and "Released SPP Command" will need to be the following: Pressed SPP: +CH_DN=P Released SPP: +CH_DN=R

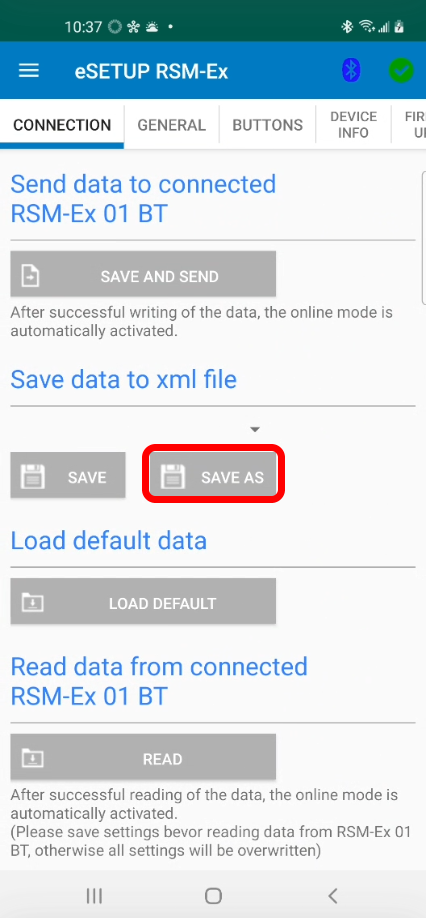

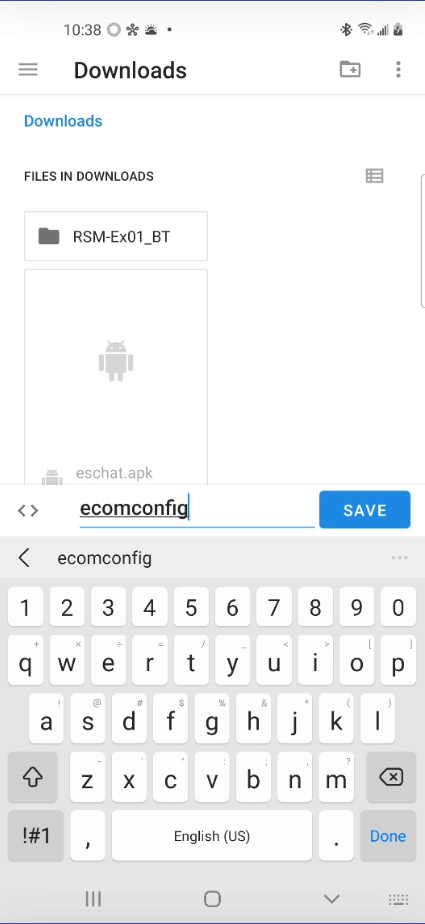

Select the "Connection" tab.  Save the file using the "Save As" option.   .You will need to name the file to save on this phone.  As these are programmable by the app, many units can be programmed by paring and loading this saved file from this phone.

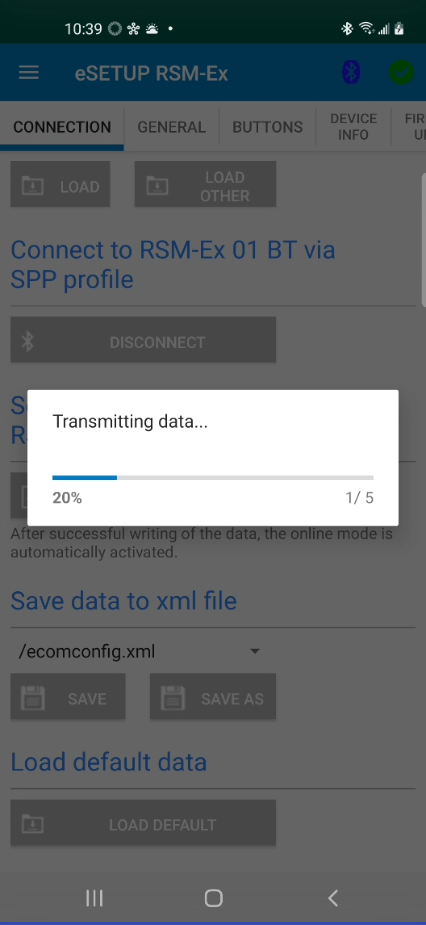

Select "Send data to connected RSM-Ex 01 BT" to finish the programming process. You may exit the app after the transmit has competed. Note: As this device has the save configuration file, it can be used to program other eCom RSM-Ex devices.  Simply pair the next device to the phone and repeat the "Save and Send" step.

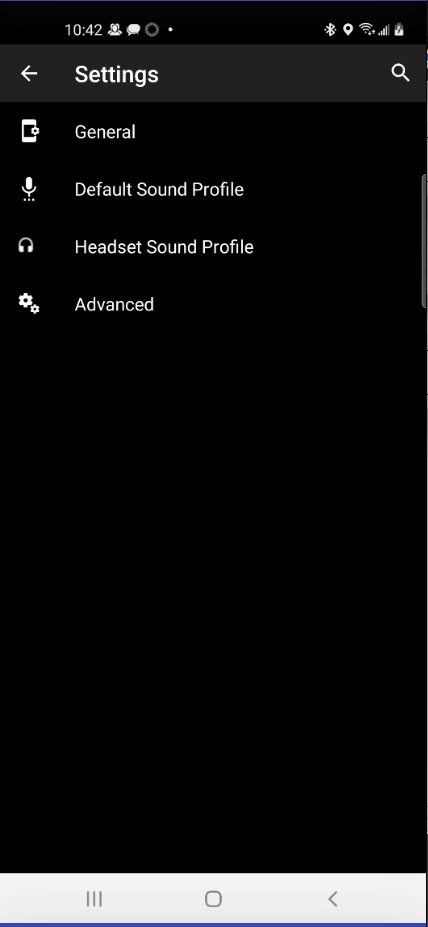

Open ESChat and go to the "Settings" menu.  Select "General" settings.

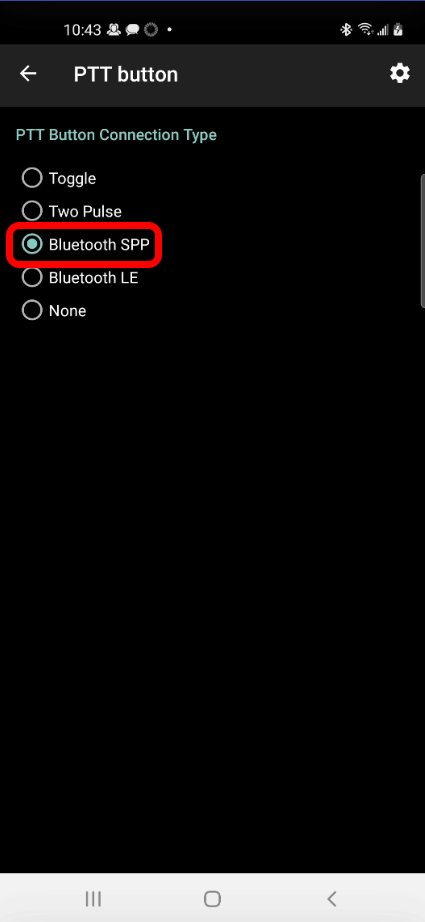

Select the "PTT Button" option and then set it to "Bluetooth SPP."   The eCom RSM-Ex is now ready to use with ESChat.

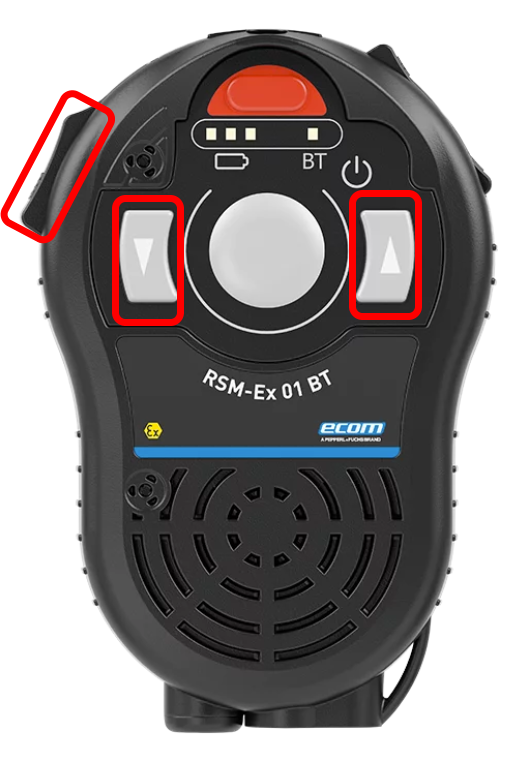

The RSM will scroll through the channels via the "Up" and "Down" Buttons on the face of the Mic.  The PTT button is on the Left corner.

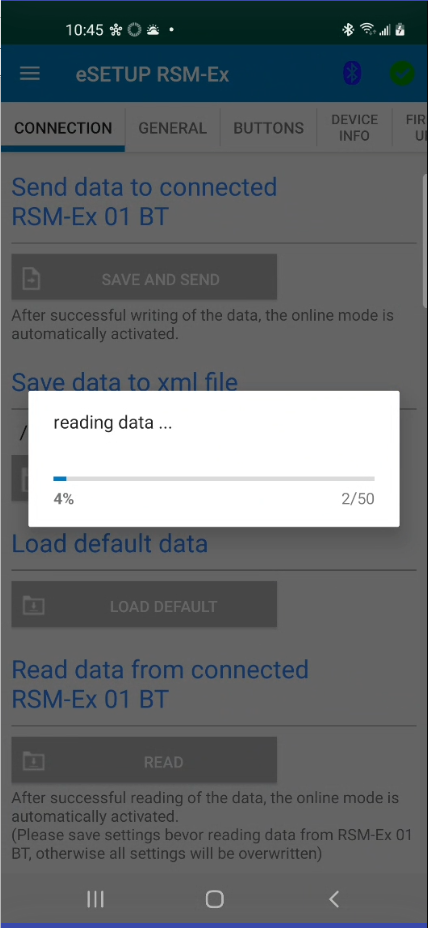

If the buttons do not function correctly, open the "eSetup RSM" app.  Select the "Reads data from connected RSM-Ex 01 BT" option.   Once the "Reading data" completes, go to the "Buttons" tab and confirm the above settings for each of the button sections.
